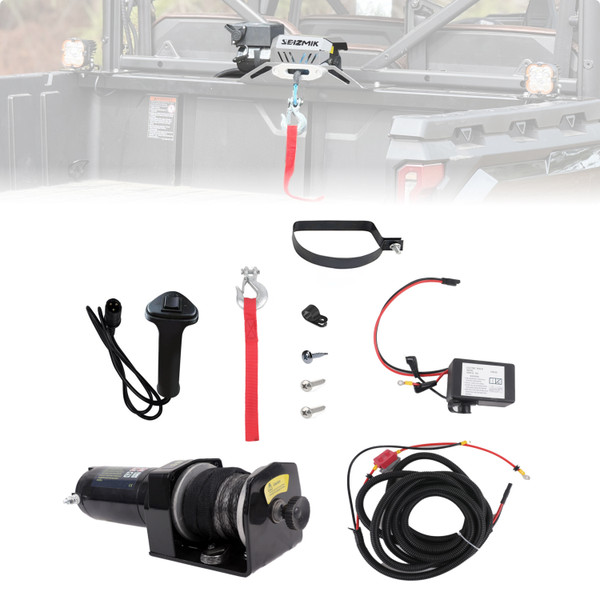

Loading heavy stuff into your UTV bed isn't always easy. The Seizmik 1,500 lb. Bed Winch helps take some of the work out of it, whether you're loading deer, firewood, tools, feed or other bulky gear. It features durable synthetic rope and a wired remote that lets you operate the winch from inside or outside the cab. It's a handy addition for hunting, property work and those everyday jobs where a little extra pulling power goes a long way.
- Helps reduce manual effort when loading cargo into your UTV bed.
- 1,500 lb single-line rated pulling capacity.
- Automatic in-the-drum brake helps hold the load when the motor stops.
- Compact design for mounting in the intended installation location.
Specifications
- Power Supply: 12V automotive battery
- Motor: Permanent magnet, 0.5 kW / 0.7 hp
- Gear Train: Differential planetary
- Gear Reduction Ratio: 150:1
- Cable: 4 mm diameter x 30.2 ft (9.2 m) long
- Drum Dimensions: 1.18 x 2.8 in (30 x 71 mm)
- Overall Dimensions: 11.3 x 4 x 4.1 in (286 x 100 x 105 mm)
- Mounting Bolt Pattern: 80mm, 8.5
- Net Weight: 15.4 lb (7 kg)
